Specifications

Max Thickness: .625 inches
Length of Blade: 20 feet
Hyd/Mech: hydraulic
Back Gauges: No Specs Attached inches
Power: No Specs Attached horsepower
SPM: No Specs Attached
CNC Control: yes
Type of CNC Control: No Specs Attached
Dimensions: No Specs Attached
Weight: No Specs Attached ounces

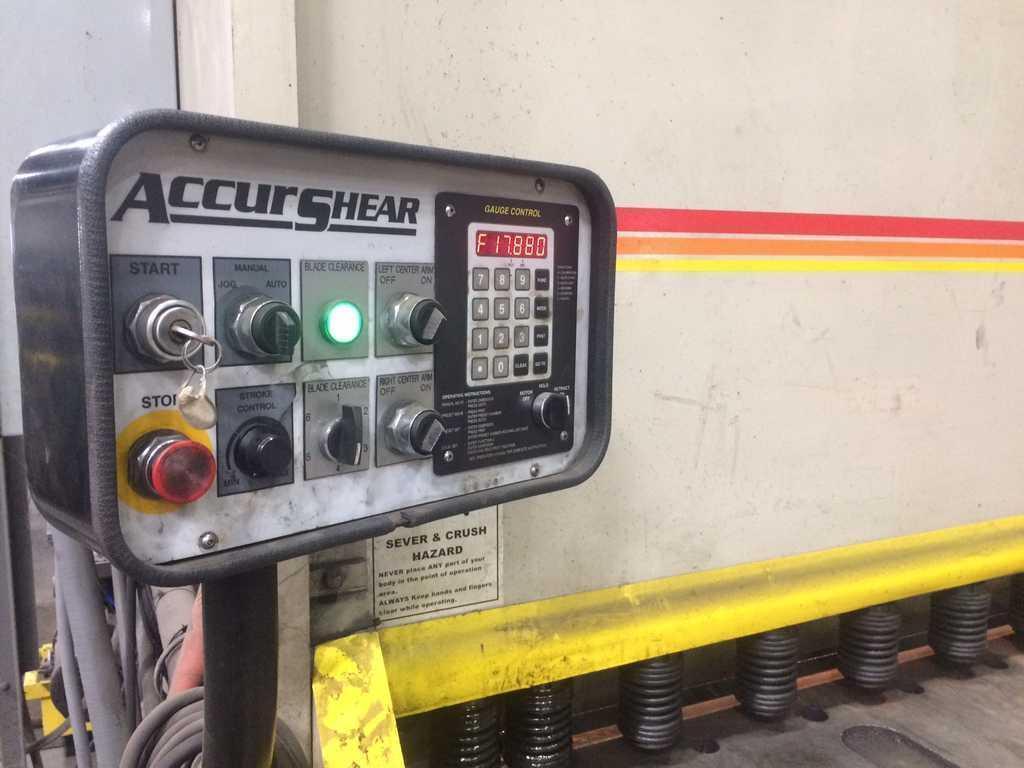

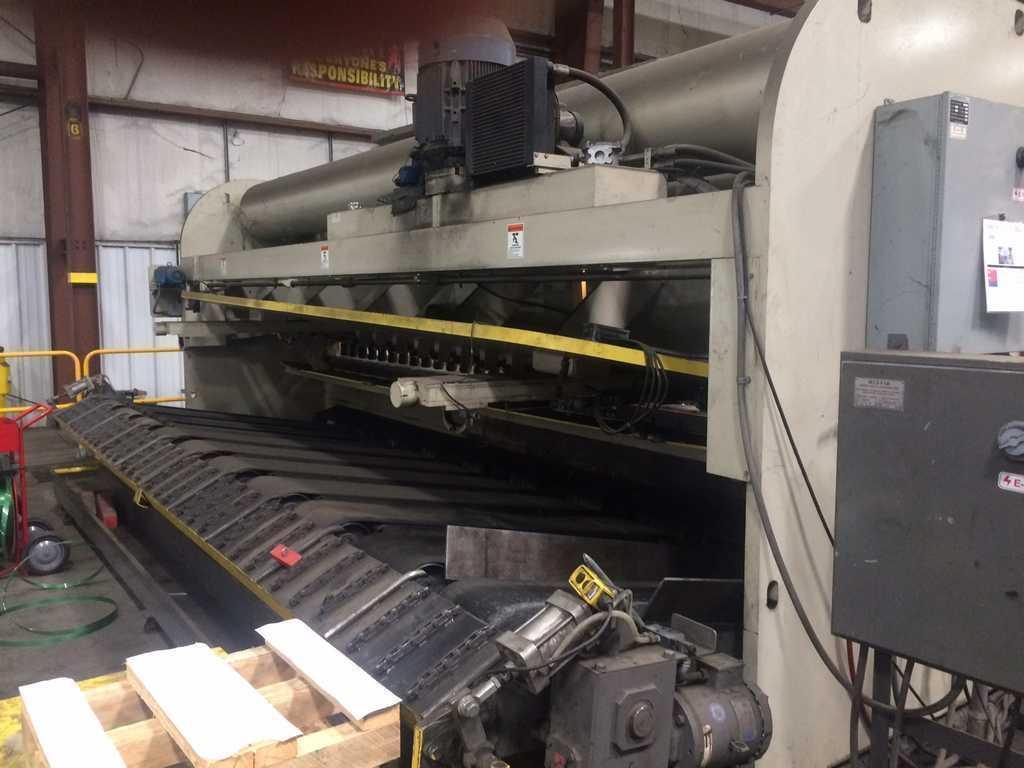

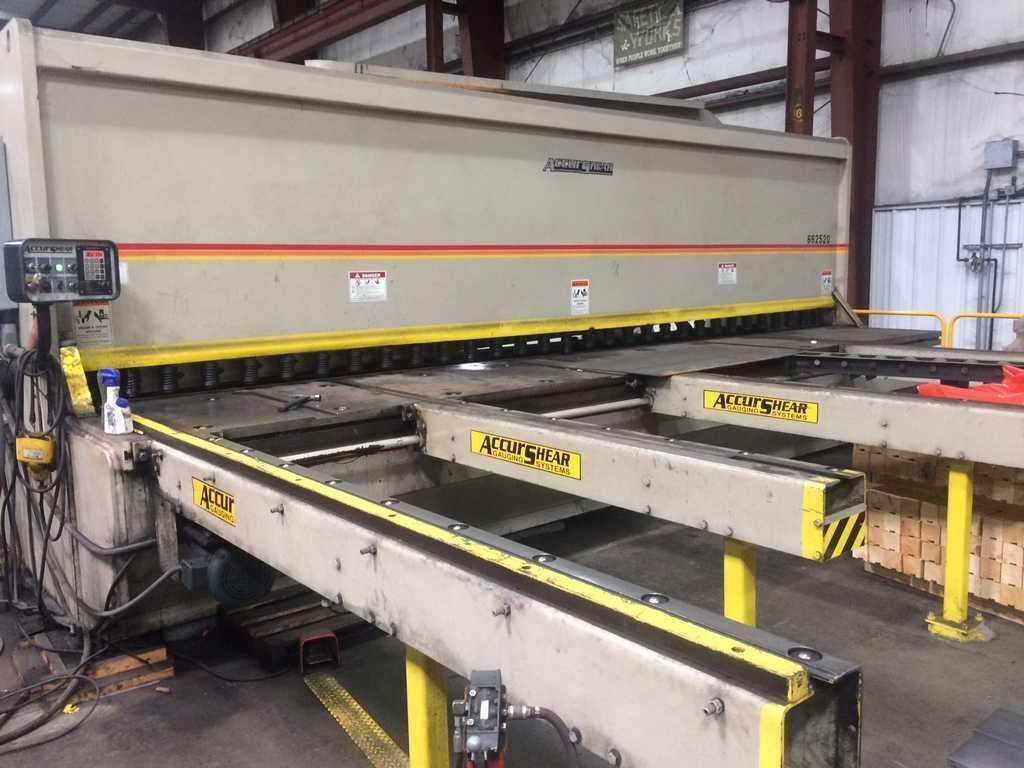

5/8" X 20' Capacity Hydraulic Power Squaring Shear with Programmable Accurshear SC2 Controller with 48" Programmable Backgauge, Accurshear CNC front gauging with 10' Squaring arm and Dual 6' Front Supports, METFAB Material Conveyor/Stacker, High-Speed Hydraulic System, Light Curtain, Shadow Light, Hand Slots in Table, T-Slot in Table Front, Ball Transfers in Table, Oil Cooler and Power Quick Blade Gap Adjustment.

SPECIFICATIONS:
Shearing Capacity: 5/8" (0.625")
Shearing Length: 20' (244")
Blade/Knife Size: 1.125" X 5" X 244"
# of Sides Per Blade: 4
Blade Clearance: Powered
Number of Hold downs: 30
Hold Down Tonnage: 60
Cycles Per Minute (High-Speed Option):  Full Stroke: 9, Short Stroke: 27
Backgauge Travel: 48:
Motor HP: 50Floor Mounting: Flush Floor Mount (No Pit Required)
Shipping Dimensions (Base Machine Only): 274" Wide X 111" Deep X 110" Tall
Approximate Weight (Base Machines Only): 90KLBS
Excellent Condition
Inspect under power in our warehouse, Jackson, MI
