Specifications

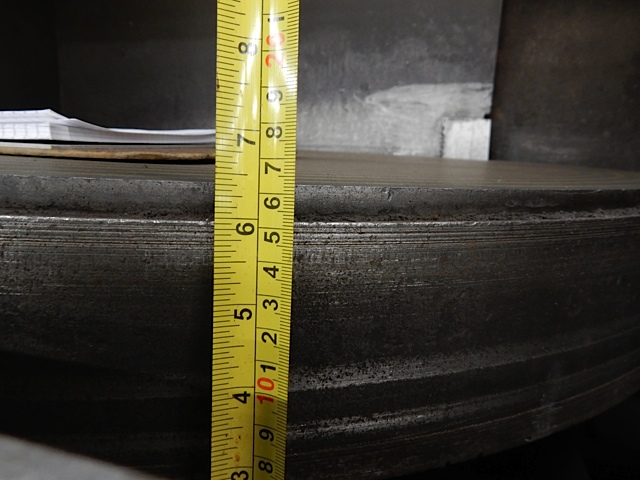

36" Magnetic Chuck Diameter, Chuck Life .406"
18-21" Range Over Chuck With New Wheel (to be verified)

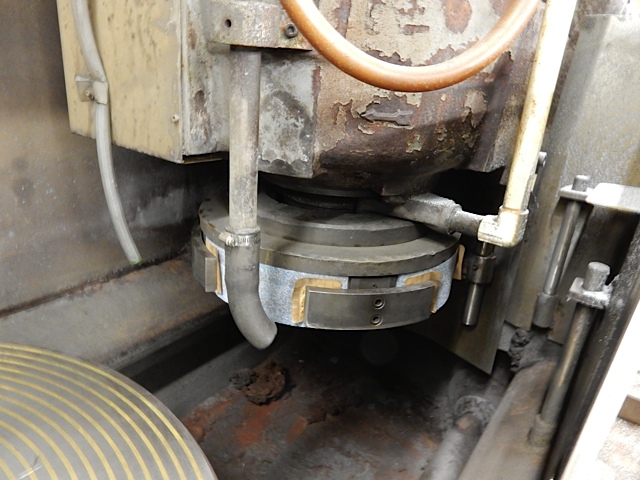

20" Diameter of Wheel Chuck, Cortland Segmented Style
720 RPM Wheel Speed
(6) Ranges of Chuck Speeds, 6, 7, 10, 15, 20, 25 RPM
40 HP, 3 Phase, Spindle Motor, 3/60/380V,725 RPM
Automatic Downfeeds Feed 0.004 - 0.080 IPM
Wet Base Design
Floor Space 11'8"L x 8'4"W x 9'1"Max./8'8"Min. Height
Approx. Weight 13,000 lbs.
Minimum work to be completed: New Water Guards, Cleaned, Cycled, Spindle Tram, Magnetic Chuck Ground in, Test Parts Run, Painted
30 Day MDNA Return
