Specifications
Chuck Dia.: 42 inches
Spindle (Horz/Vert): vertical
Power: No Specs Attached horsepower
Swing: No Specs Attached inches
Under Wheel: No Specs Attached inches
Table Speeds: No Specs Attached
Grinding Wheel Width: No Specs Attached inches
Table Motor Horsepower: No Specs Attached horsepower
Grinding Wheel Dia.: 22 inches
CNC Control: No Specs Attached
Type of CNC Control: No Specs Attached
Dimensions: No Specs Attached
Weight: No Specs Attached ounces

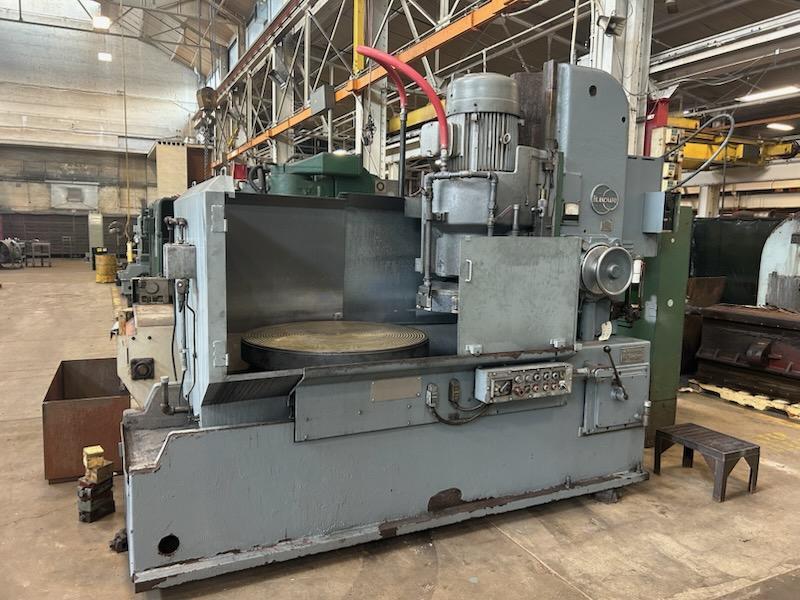

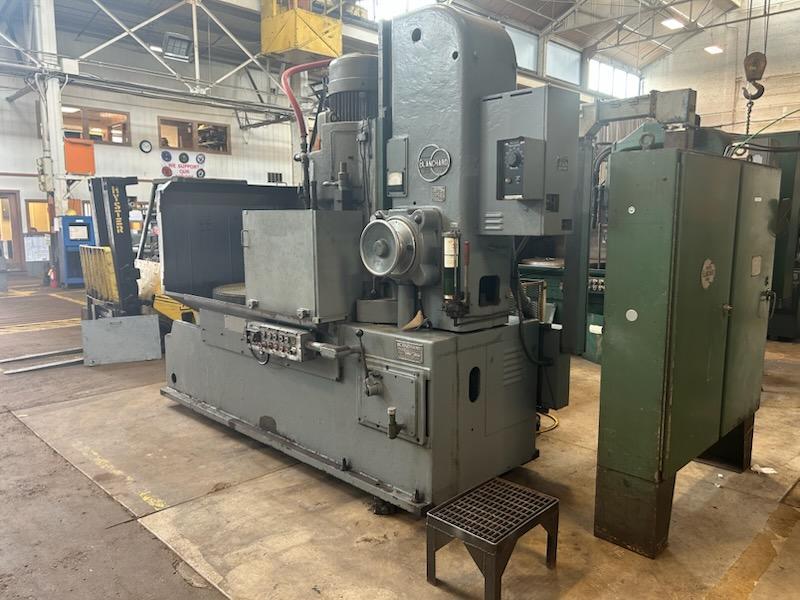

GEARED HEAD HIGH HP DESIGN
22" Grinding Wheel Diameter
42" Magnetic Chuck (7/16" Chuk Life)
48" Swing Inside Water Guards
24" Vertical Range(to be verified)
75 HP Geared Head Main Spindle
230/460 Volt, 1775 RPM, 224/112 Amp, Main Drive Motor
Pick-Feed Type of Down Feed System
.004-.080 IPM Down Feed Rates
6 to 33 RPM Chuck Rotation Speeds
Automatic Lube System
16,000 LBS. Approximate Base Weight
Machine is Being Sold as a Certified Machine
Scope of Work Performed:
Repaired Dresser Arm
Cleaned up electrical
Misc. Repair on water Guards
Saddle Lube Repair
Replaced broken coolant lines

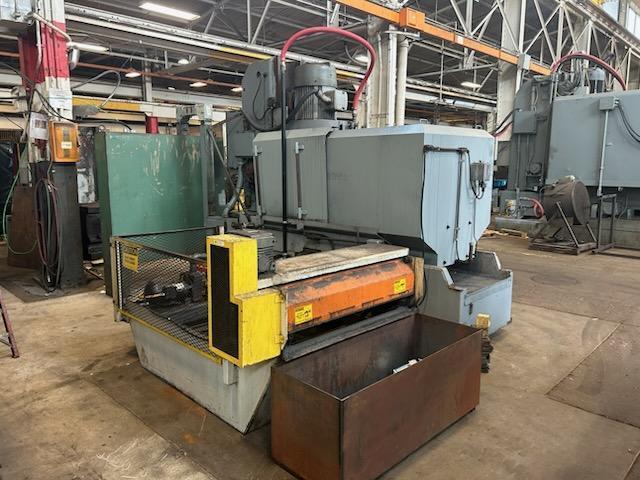

Added a used coolant tank and drag out
Tram Head to the Table
Grind Flat Test Parts
8 Hour Test Run
