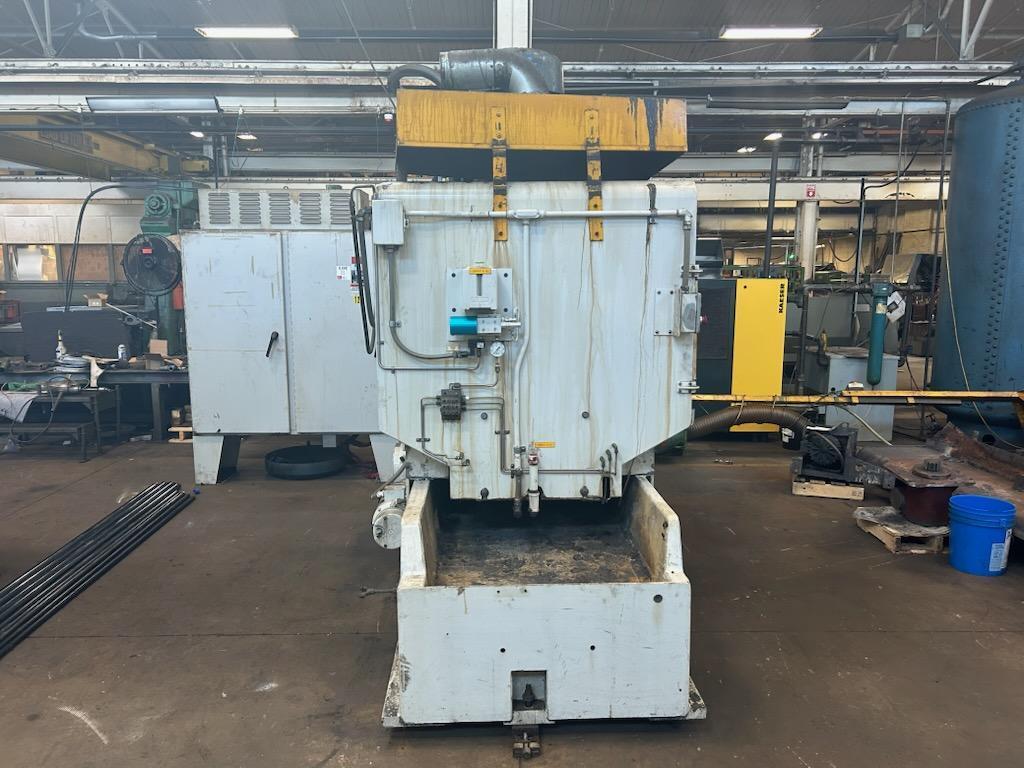

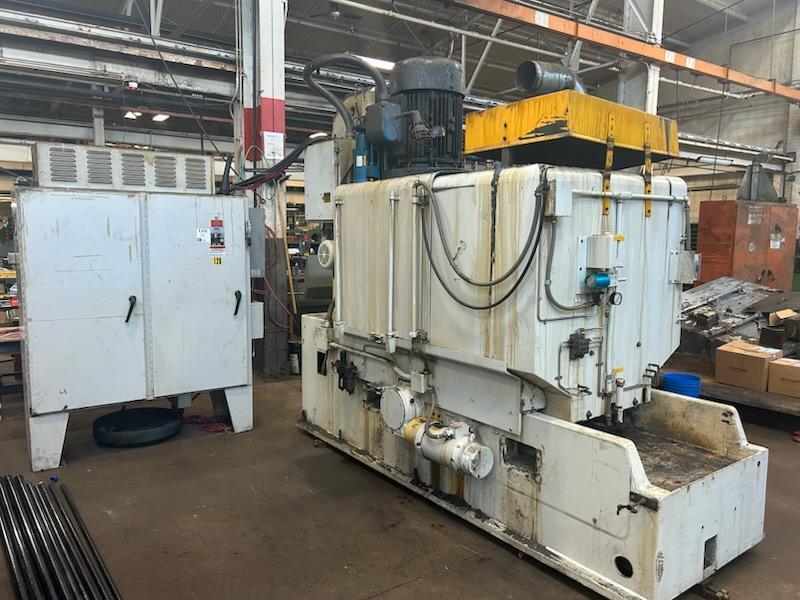

Blanchard #22HD-42, 42" Geared Head Vertical Spindle Rotary Surface Grinder "Certified"

TypeGrinders, Surface, Rotary

BrandBLANCHARD

Model22HD-42

Year1977

Stock #17259

ConditionUsed

Request Quote

Specifications

Chuck Dia.: 42 inches
Spindle (Horz/Vert): vertical
Grinding Wheel Dia.: 22 inches
GEARED HEAD HIGH HP DESIGN
22" Grinding Wheel Diameter
42" Magnetic Chuck (7/16" Chuk Life)
48" Swing Inside Water Guards
24" Vertical Range(to be verified)
75 HP Geared Head Main Spindle
Pick-Feed Type of Down Feed System
.004-.080 IPM Down Feed Rates
6 to 33 RPM Chuck Rotation Speeds
Automatic Lube System
16,000 LBS. Approximate Base Weight
