Specifications

Chuck Dia.: 60 inches
Spindle (Horz/Vert): No Specs Attached
Power: 200 horsepower
Swing: 72 inches
Under Wheel: 26 inches
Table Speeds: No Specs Attached
Grinding Wheel Width: No Specs Attached inches
Table Motor Horsepower: No Specs Attached horsepower
Grinding Wheel Dia.: 32 inches
CNC Control: No Specs Attached
Type of CNC Control: No Specs Attached
Dimensions: 186" L X 90" W X 11'-9" Tall
Weight: 40200 pounds
60" Magnetic Chuck
72" Swing Inside Water Guards
200 HP Main Grinding Spindle
3/60/460 Volt
32" Diameter Grinding Wheel
Cortland Style 8 Segment Grinding Chuck
5.6 to 20.7 Chuck Rotation Speeds RPM
.004 to .080 Down Feed Rates IPM (Pick-Feed)
10,000 Lb. Approximate Table Load
Machine Weight Approximately 40,200 Lbs.
Wheel Dresser
Requires external Coolant System (not included)
Coolant Requirements 1,000 Gallon (Min. Outside System)
Dimensions (Approximate):
11'-9" Height from base to top of column
180" Length
90" Width
42,000 Lbs. Weight

Machine is being sold as certified with the following minimum scope of work completed:
Main Motor:
- Rebuild Spindle w/ new bearings and seals and new gear set

Transmission:
- Install new variable speed drive transmission

Saddle Work:
- Replace gear rack.
- Re-fit saddle to ways.
- New lube lines.
- New way wipers.
- New oil lube pump for ways.



Saddle Traverse Gear Box:
- New bearings and seals
- New pinion gear shaft

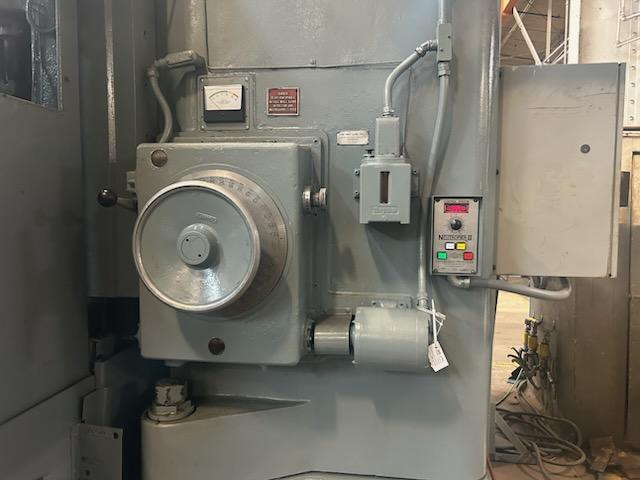

Clean, inspect and test upper down feed gear box
New Coolant Lines
Repair Operator Guard
Clean and paint machine
Tram the head to the table
Grind table flat
Test grind parts

*****MACHINE IS STILL IN PROCESS. UPDATED PICTURES WHEN COMPLETE*****
