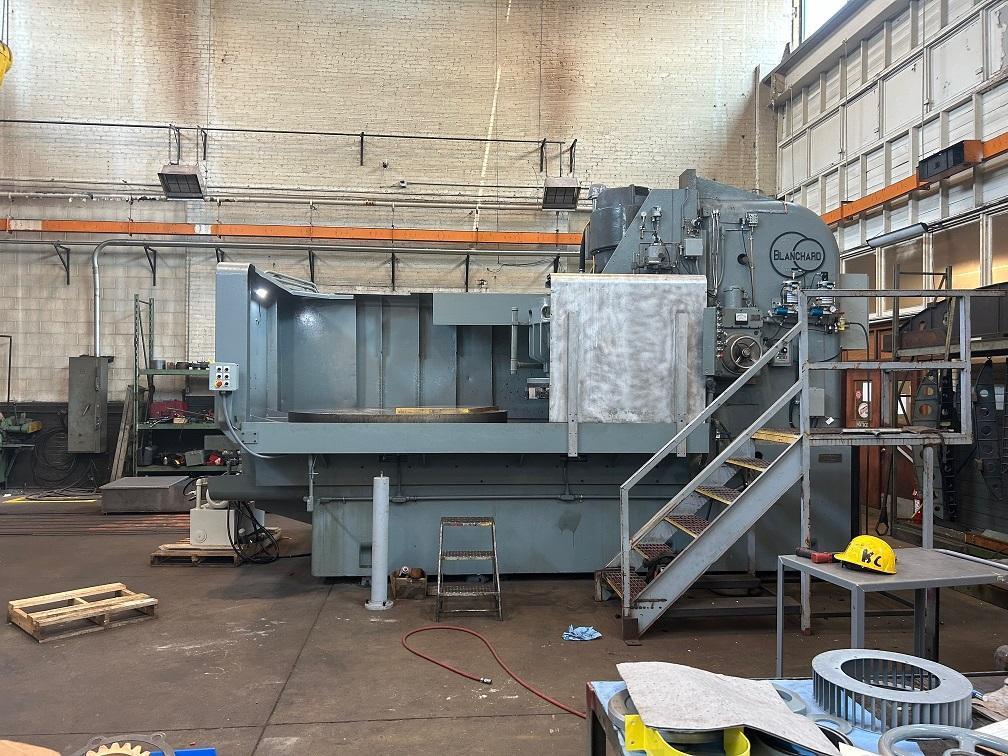

Chuck Dia.: 84 inches
Spindle (Horz/Vert): No Specs Attached
Power: 250 horsepower
Swing: 96 inches
Under Wheel: 36 inches
Table Speeds: No Specs Attached
Grinding Wheel Width: No Specs Attached inches
Table Motor Horsepower: No Specs Attached horsepower
Grinding Wheel Dia.: 42 inches
CNC Control: no
Type of CNC Control: No Specs Attached
Dimensions: No Specs Attached
Weight: No Specs Attached ounces
Basic Machine Specifications, Subject to Verification
84" Magnetic Chuck (full)
Approximately .500" "Chuck Life"
96" Swing Inside Water Guards
36" Maximum Height Under Wheel
42" Grinding Wheel
250 HP Main Spindle Drive,240/480 Volt, Wired 480 Volt
(4) Table Speeds of 3, 4.8, 7.8, 11.9 RPM
.008" to .096" Per/Min Variable Vertical Down-feeds

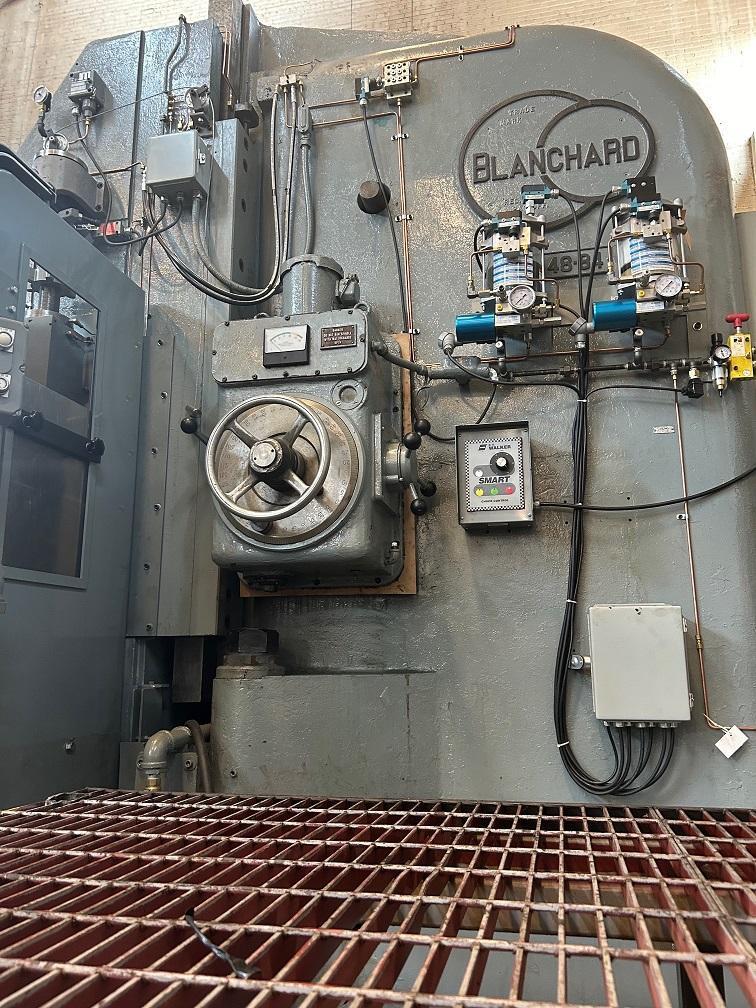

Power Rapid Raise and Lowering of Head
Hardened Bed Ways
1/2" Magnetic Chuck Life
Grinder Dimensions (Aprox.) 240.57" L x 108" W x 160" H
Coolant Dimensions (Approx.) 264" L x 96" D x 105" H
Weight Approximately: 75,000 Lbs.
Machine will be sold as "certified", minimum scope of work to be performed:
TABLE AND TABLE SUPPORT WAYS:
a) Machine as required.
b) Precision Scrape, fit the table support ways to the table ways.
c) Installation of Moglice wear material in cup if needed.
d) Grind magnetic chuck hardened bull gear
CARRIAGE AND BASE WAYS:
a) Re-grind hardened base ways (Replace if required)
b) Precision scrape and fit carriage to base ways.
c) Installation of cast iron way replacement if required on carriage ways
CARRIAGE AND TABLE DRIVE MECHANISMS
a) Inspect and rebuild carriage drive assembly (including replacing bearings and seals)
b) Replace Rack and Pinion
c) Inspect and rebuild table drive assembly (including replacing bearings and seals)
HEAD FEED MECHANISM:
a) Inspect and rebuild head feed as required (including replacing bearings and seals).
b) Inspect Feed worm gear and pinion, remove backlash or replace if required

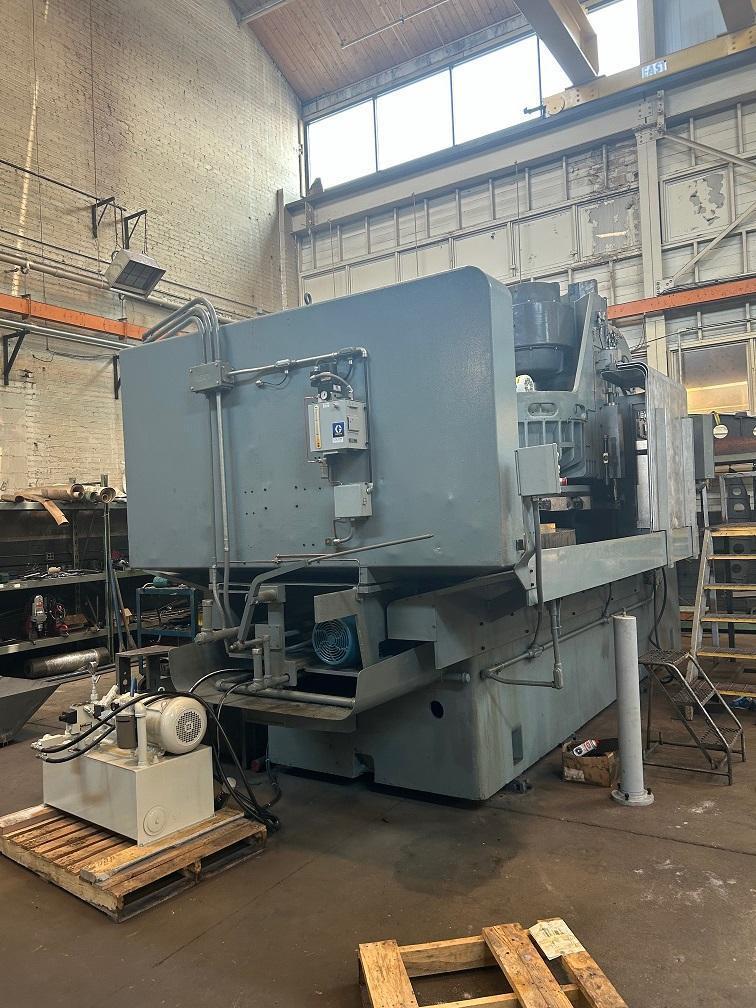

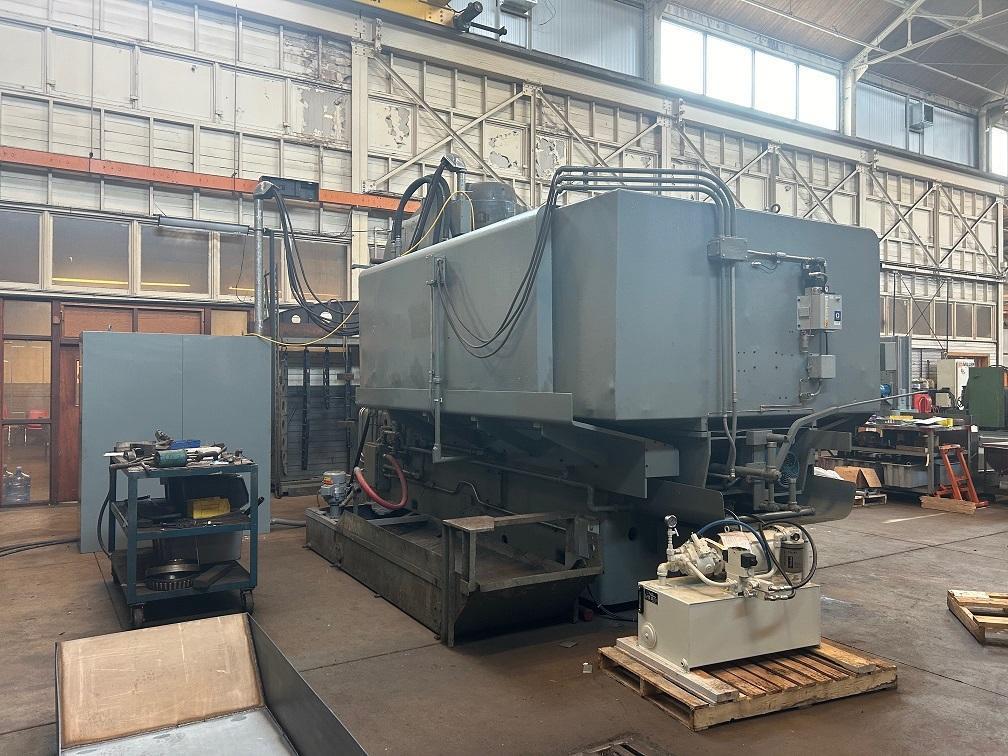

a) Install Automatic oil lubrication system
b) Remove all lube lines on the carriage, base and table.
c) Replace all lube blocks and clean oil ports on the carriage, base and table.
d) Re-pipe with all new lines and fittings, the carriage, base and table.
a) Clean up panel and replace main wire harness
b) Install new magnetic chuck controls
GUARDING AND COOLANT LINES:
a) Replace water guarding with new
b) Fit to machine
c) Install new coolant Lines and External Clean Out Hose
d) New Automatic shut off in spindle line
b) Paint grey. Will accommodate customers paint specs if possible
All above work performed will come with a 90 Day Warranty. The machine itself comes with a standard 30 Day MDNA Return Privilege.
30% Down with Purchase Order
70% Due Prior to Shipment
NOTE: Due to rising costs partly by unsteady pricing in purchased goods and supply chain issues, this quote is good for 30 days. Prices are subject to change, please contact us to confirm price prior to issuing an order.
