Specifications

44" wide belt
3/16" to 4" thick pieces
Belt Speed: 52.5 ft./sec. (16 m/s)
Grinding Belt dimension: 44" x 84.5" (1120 X 2150 mm )
Main Motor: 25 Hp + 5.5 Hp (18.5 + 4 kW)
Drive feet: 1.8 Hp (3.3-33 ft./min.), 1.3 kW (1-10 m/min)
Drive high adjustment motor: 3/4 Hp (0.55 kW)
Conveyor Belt dimension: 43" x 118" (1100 x 3000 mm)
(NI-Special pipe Typ L/RN-60Shore)
Pass Line: 33.5" (850 mm) constant
460 Volt
Machine Weight: 5100 Lbs. (2300 kg)
68"W x 87"L x 85"H overall dimensions

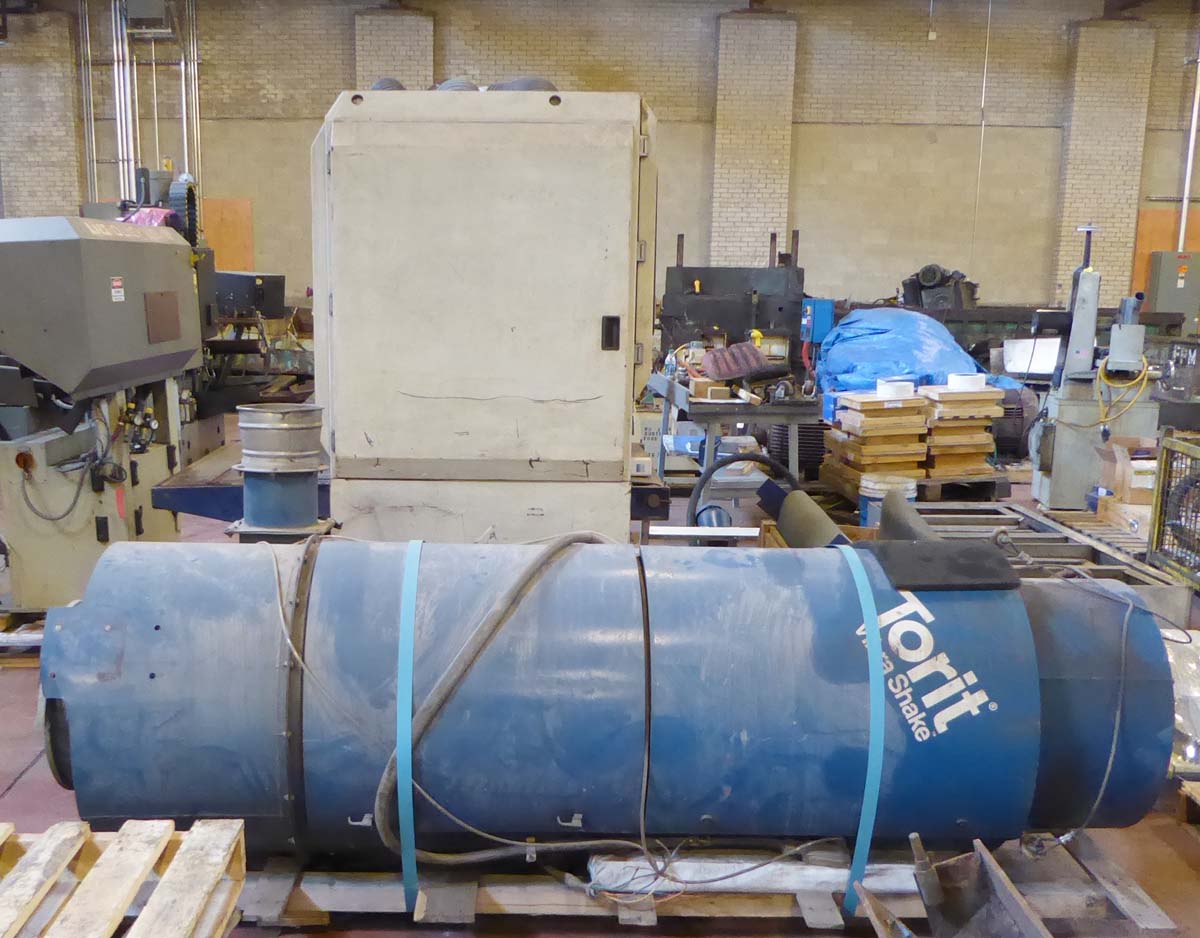

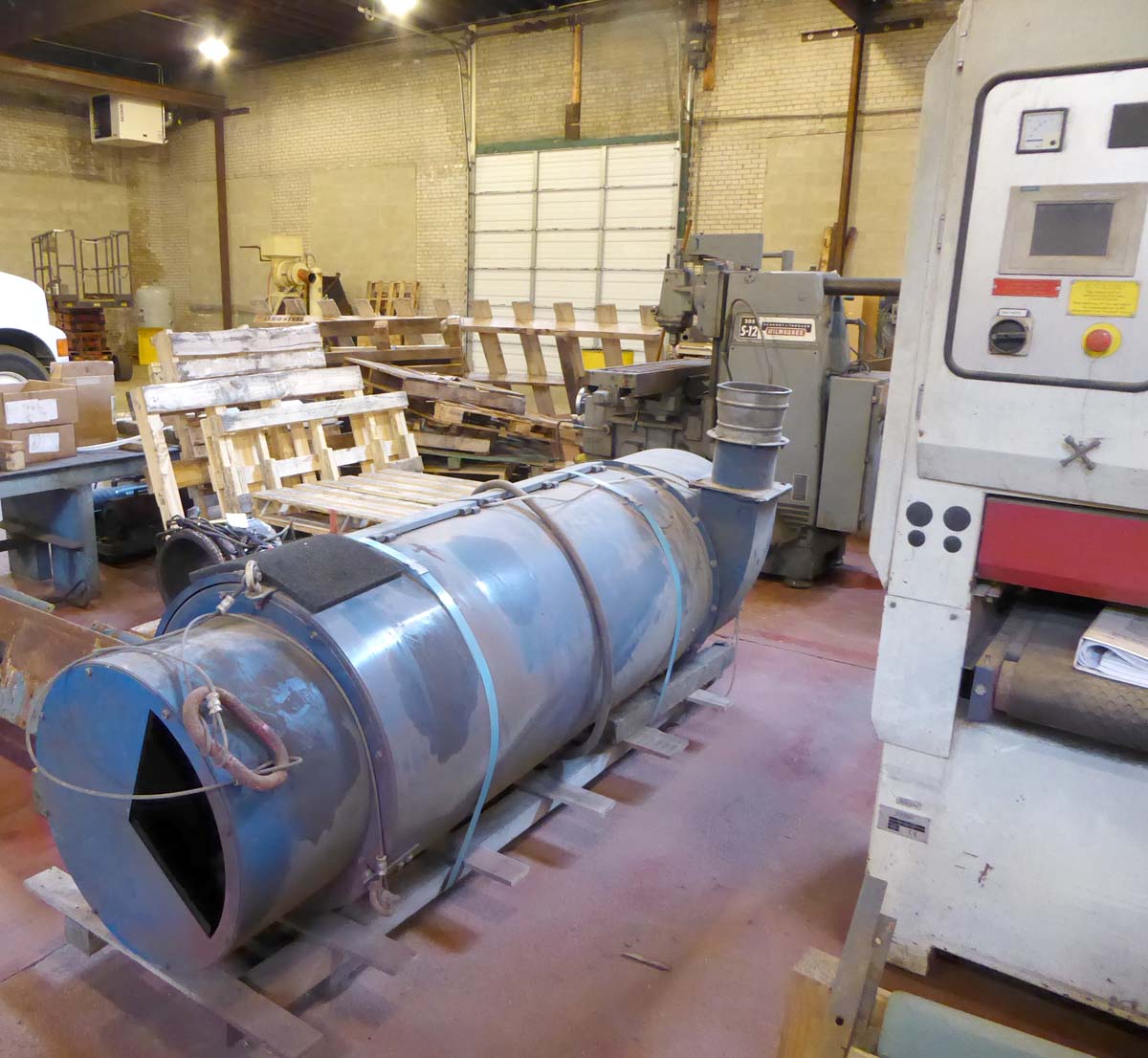

With Torit Dust Collector
Inspect under power in our facility
